EMC Measurements


Standard-compliant EMC measurements using extremely low-distortion measurement data acquisition devices

EMC measurements with measurement technology from Labortechnik Tasler

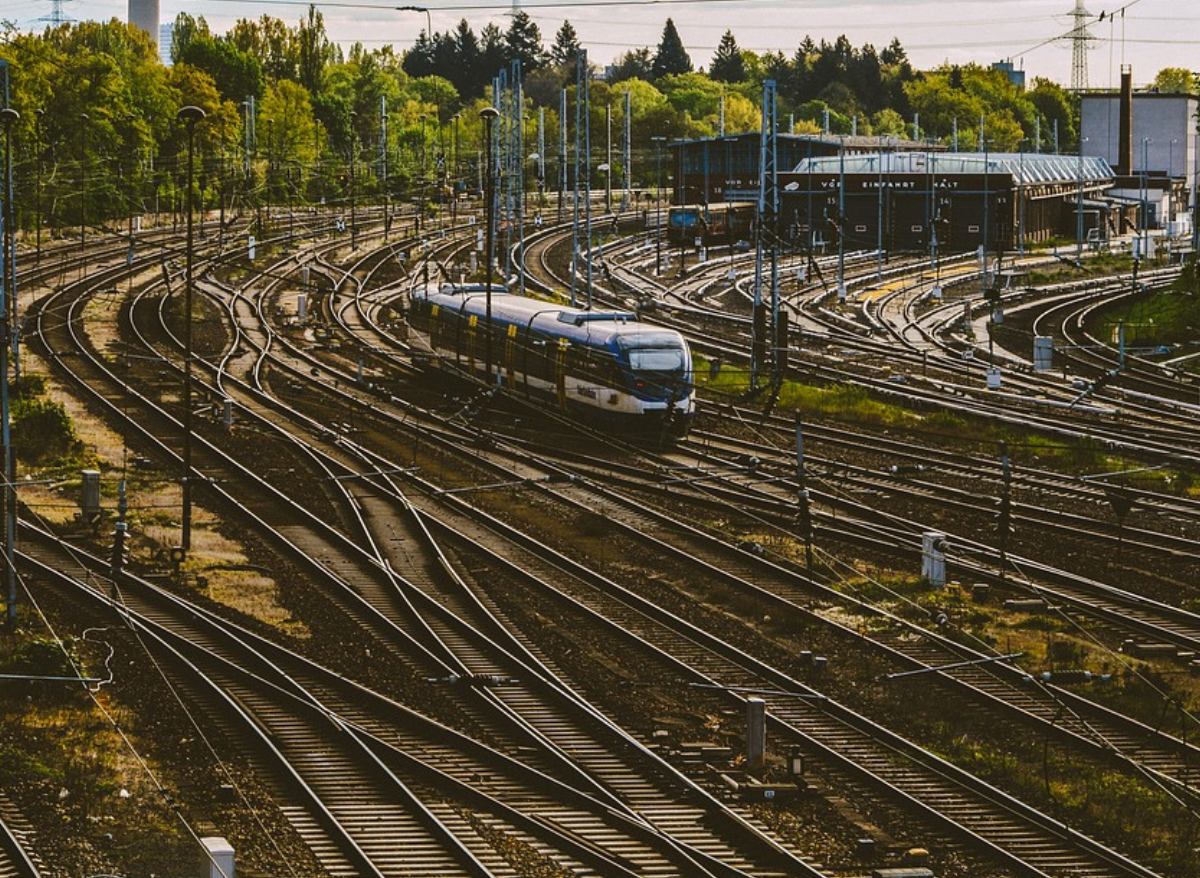

The measurement technology and measuring devices from Labortechnik Tasler, especially the LTT24, are perfectly designed for demanding EMC measurements (electromagnetic compatibility measurements). LTT's proven measurement systems perform excellently, particularly in the railway sector and in ensuring efficient and safe railway operations, where unwanted electrical or electromagnetic effects must not cause interference.

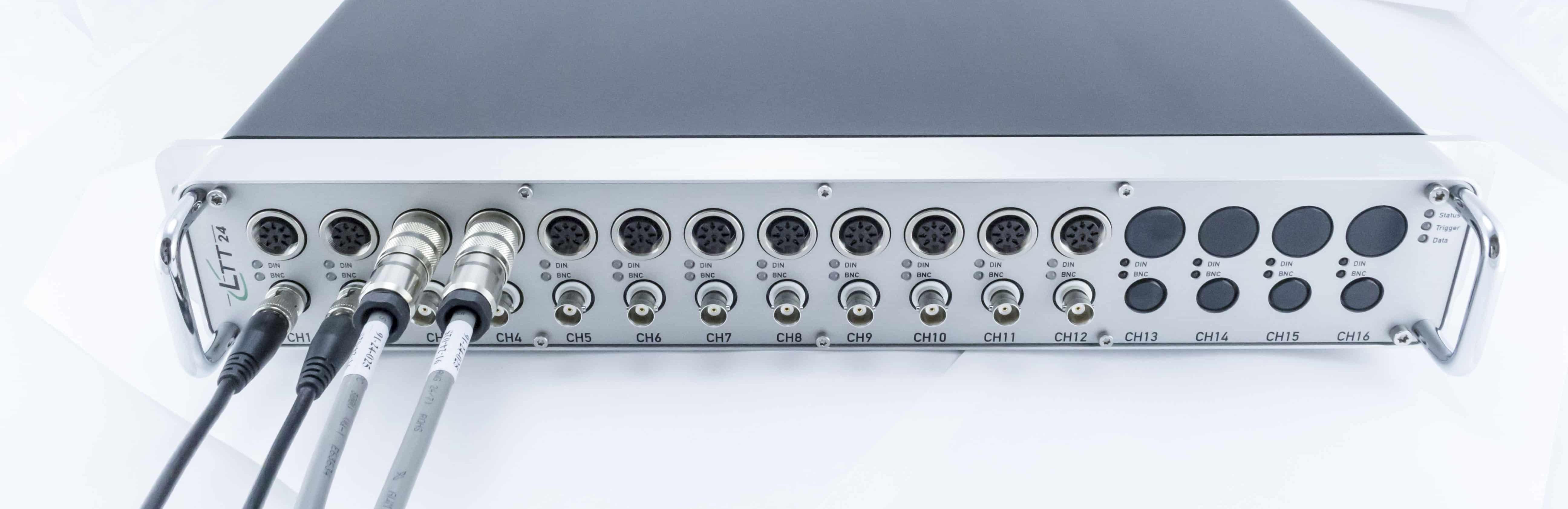

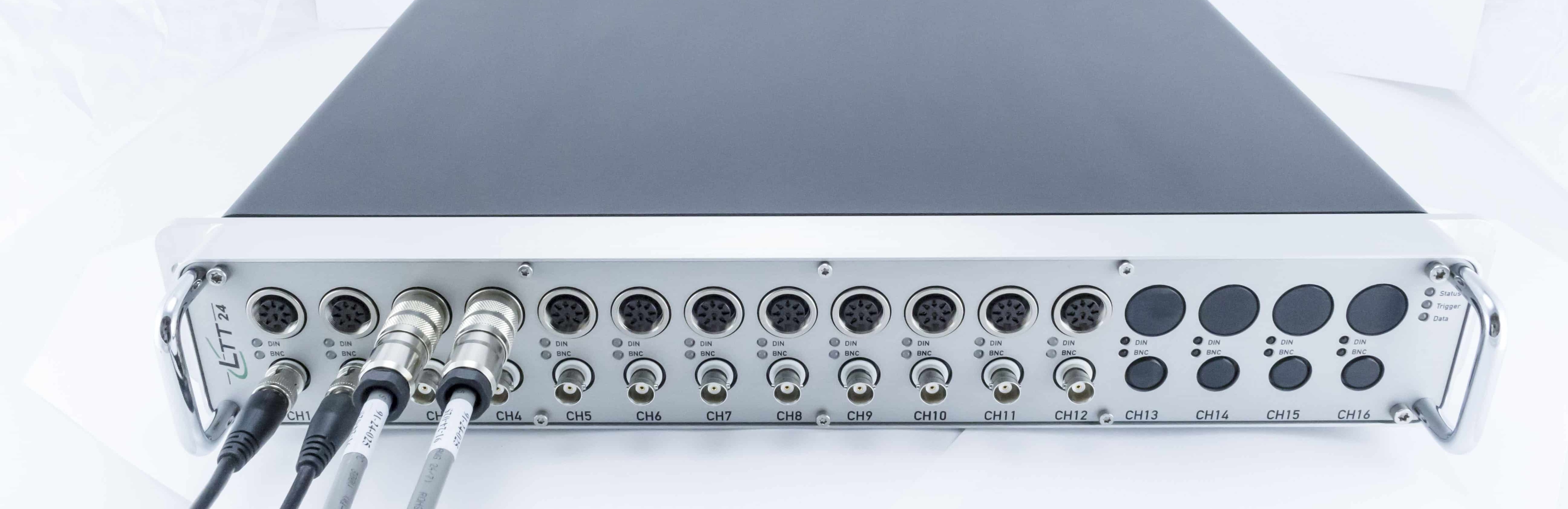

The LTT24 impresses with:

  • Up to 16 channels with a sampling rate of 4 MHz per channel
  • 24-bit resolution, allowing the entire operating frequency range to be captured in a single measurement
  • Highly synchronous sampling across all channels – essential for accurate field analysis
  • Mobile use anywhere in the rail network, even without installed switch control devices

Example application: Track switching systems

  • Standard-compliant EMC measurements on track switching equipment (see link below)

Application reports

LTT24 Messdatenerfassungsgeräte mit 4, 8 und 16 Kanälen

Click here for LTT24 product information
