LTTsmart - Precision Data Acquisition System


The compact DAQ or precision- power analyzer LTTsmart is ideally suited for industrial use

LTTsmart -daq modules

The precisous measurement system LTTsmart is a consistent further development of our precision measuring instruments. In a new housing, the measuring device is ideally designed for use in industrial environments. As power analyzer, its measurement accuracy makes it ideally for the development of electromobility.

As a precision data acquisition system (DAQ), the LTTsmart is ideally suited for measuring electrical data. Electrical signals can be acquired and evaluated according to internal calculations.

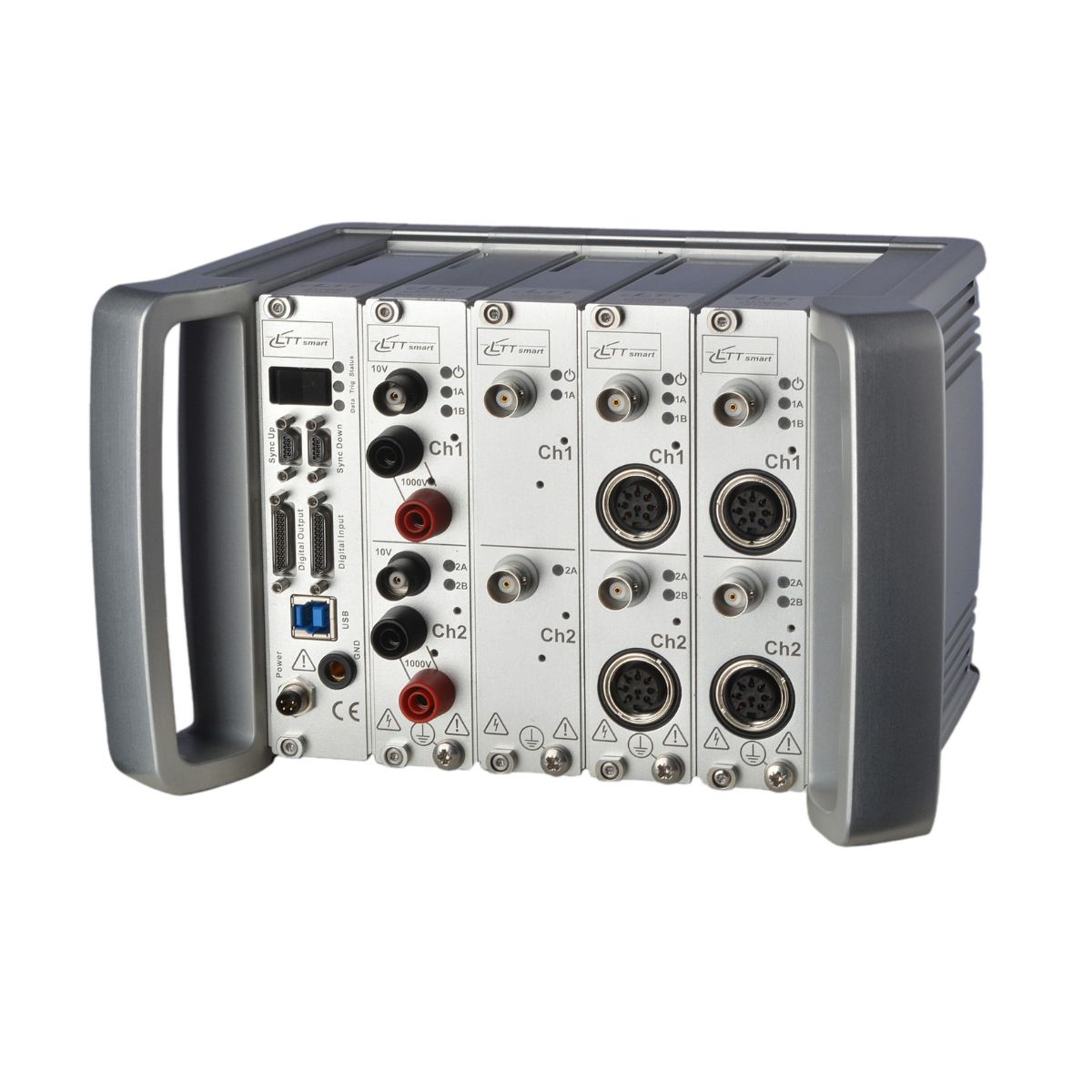

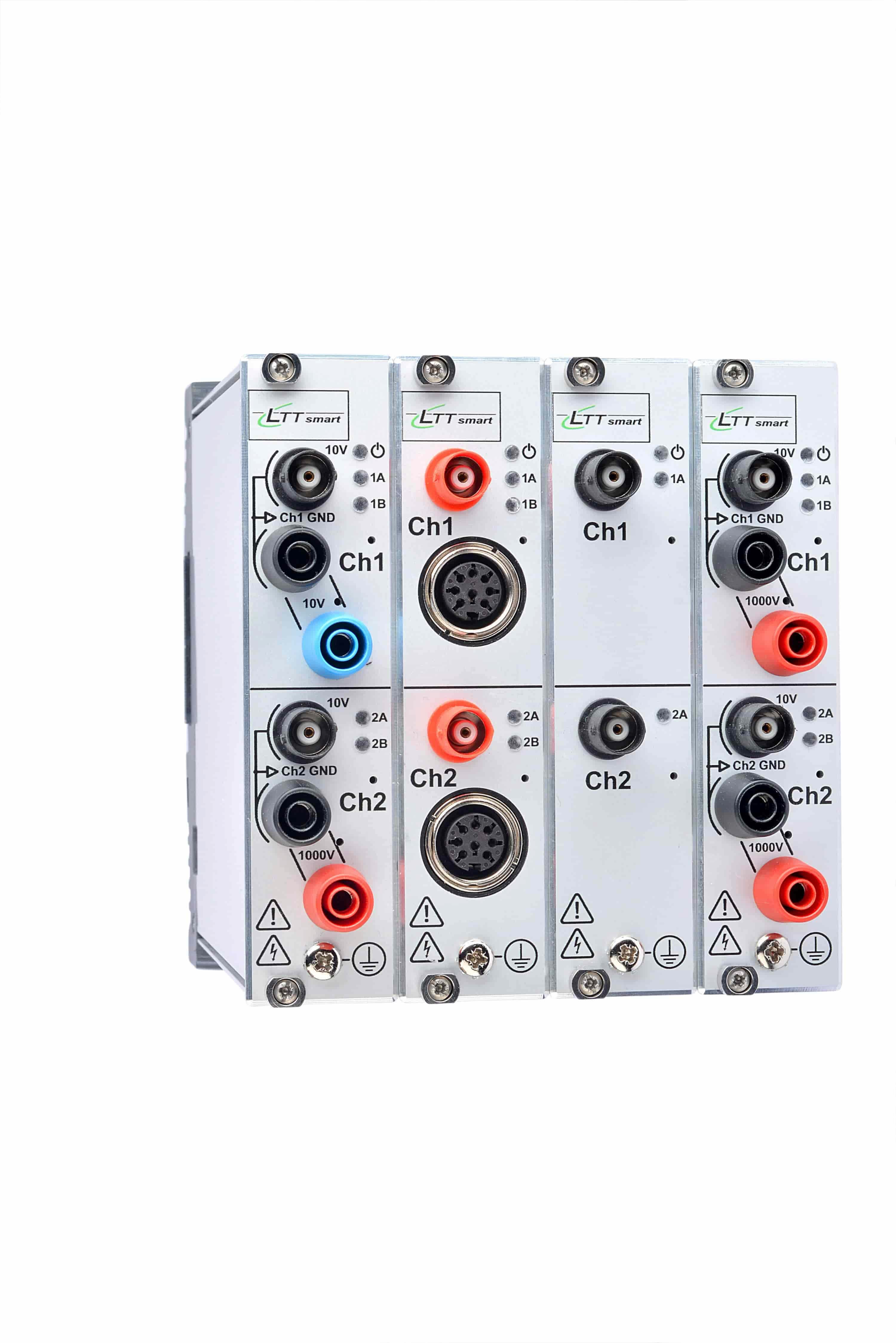

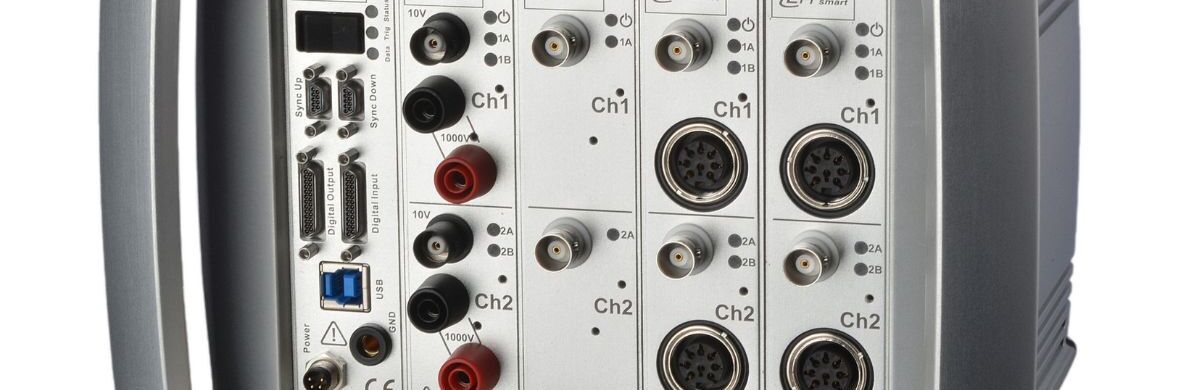

Each module in the aluminum housing consists of two channels each and can be flexibly extended by several modules in different variants of input channels. The flexible selection of the modules allows to design a tailored solution to the respective requirement.

For example, the LTTsmart is perfectly suited for use in power analysis of inverter signals on battery-powered electric motors, in OEM test bench construction or for power quality measurement.

The best way to convince yourself of our high-speed measuring device is to visit us live and arrange a demo appointment with us today.



Important facts:

  • up to 2 MHz sampling rate per channel (optional 4 MHz per channel)
  • 900 kHz bandwidth (optional 1,7 MHz)
  • extremely high precision: 0.015%*signal + 0.015%*range
  • 24 Bit A/D Converter - extremely low noise and distortion free
  • highly synchronous up to 16 channels per device and multiple devices
  • 2500 VDC galvanic isolation of all channels
  • meets the requirements of DIN IEC 60034-2-3-3
  • Voltage and current inputs: up to ±1000 Vrms
  • optional ICP®, charge, DMS and/or pulse
  • Voltage and current inputs: up to ±1000 Vrms
  • compact and robust for operation near inverter

Technical Specifications - download here:

2-channel high speed 2MHz dataacquisition modules

The LTTsmart offers you the following technical specifications:

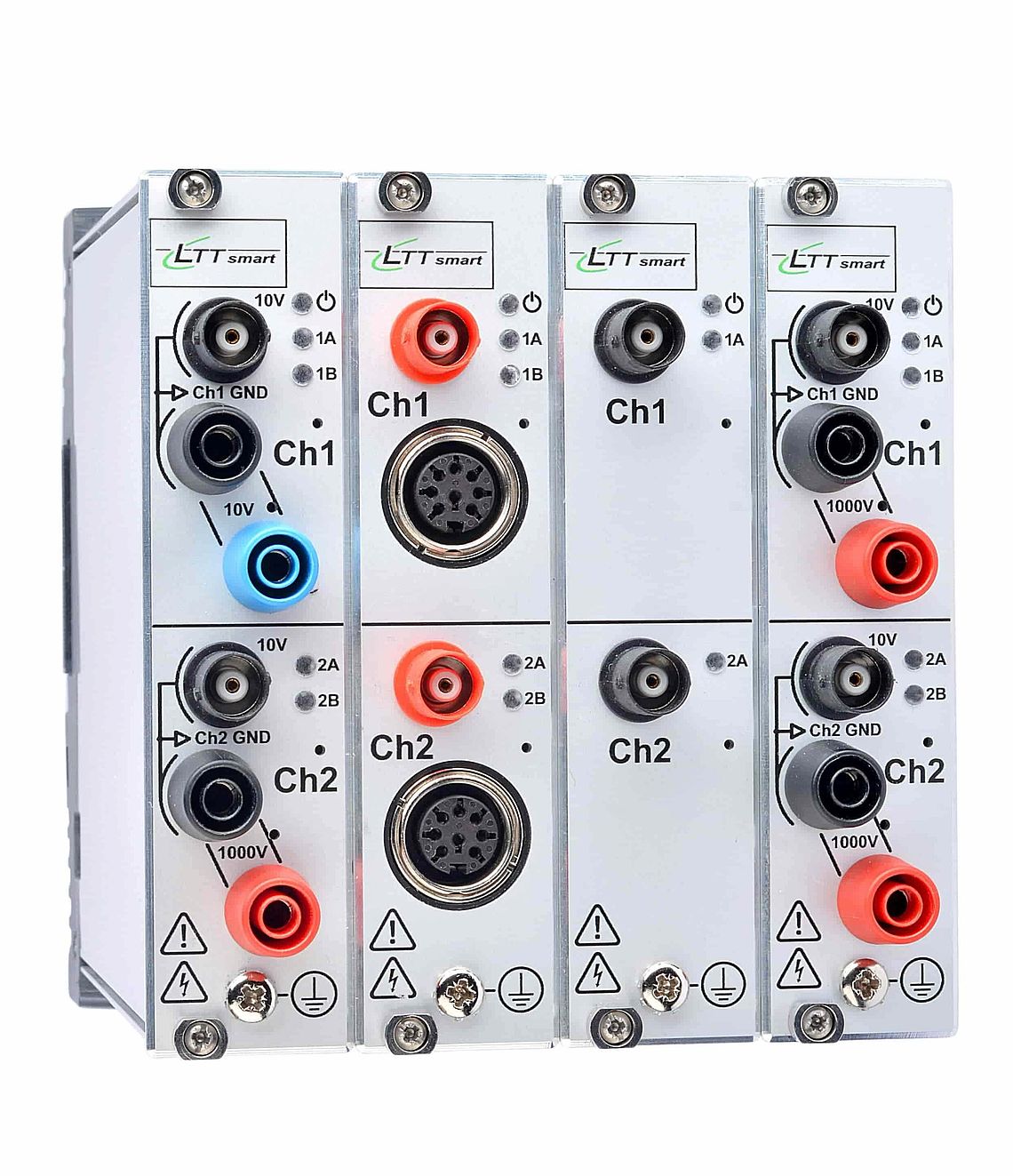

Module versionChannel description

LTTsmart HH

Power Analyzer

Ch1: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms

Ch2: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms

LTTsmart LH

Power Analyzer light

Ch1: Volt: ±500 mV and ±10 V

Ch2: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms

LTTsmart LL

TransientRecorder

Ch1: Volt: ±500 mV and ±10 V

Ch2: Volt:  ±500 mV and ±10 V

LTTsmart LDI

SensorCorder

Ch1: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC

Ch2: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC

LTTsmart LDIP

SensorCorder

Ch1: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC

and pulse/counter AZ inputs (1.2ns resolution)

Ch2: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC

LTTsmart LI

SensorCorder light

Ch1: Volt: ±500 mV and ±10 V, Charge, ICP®: AC und DC

Ch2: Volt: ±500 mV and ±10 V, Charge, ICP®: AC und DC

LTTsmart MM

TransientRecorder

Ch1: Volt: ±500 mV, ±10 and ± 90 V

Ch2: Volt: ±500 mV, ±10 and ± 90 V





Supported sensors

Standard connection depending on module

The LTTpro software keeps an eye on your measurement

The LTTpro software keeps track of all your measurements. We offer the following options for our LTTpro software:

  • LTTpro: Control and Visualization Software
  • LTTpro: Poweranalysis
  • LTT2API: Library for integration into customer applications
  • LTT library for the connection to DASYLab, GI.bench, Matlab, m.Lab, LabView etc.

You can also purchase a 1-year license for software updates and/or an online mathematics function from us.

Of course, customer-specific adaptations of our software are also possible. We will be pleased to make you an individual offer. Simply send us an e-mail to kontakt(at)tasler.de or give us a call.
