Product overview of LTT precision measurement technology


High-precision measurement technology has been a hallmark of Labortechnik Tasler GmbH for more than 25 years. Discover our products in this overview.

Precision measurement technology from LTT: An overview

Precision measurement technology from Labortechnik Tasler GmbH delivers accurate, fast, and reliable measurements for research, development, and industry. High-resolution 24-bit AD converters and sampling rates of up to several MHz capture electrical, mechanical, and acoustic signals with maximum precision. EMC-optimized modules with galvanic isolation guarantee interference-free measurements and easy integration. Whether for sensor development, motor test benches, NVH analyses, or power analyses, the systems save time, reduce sources of error, and support efficient development processes. With Labortechnik Tasler, you can rely on reliable precision measurement technology that offers maximum accuracy, safety, flexibility, and performance.

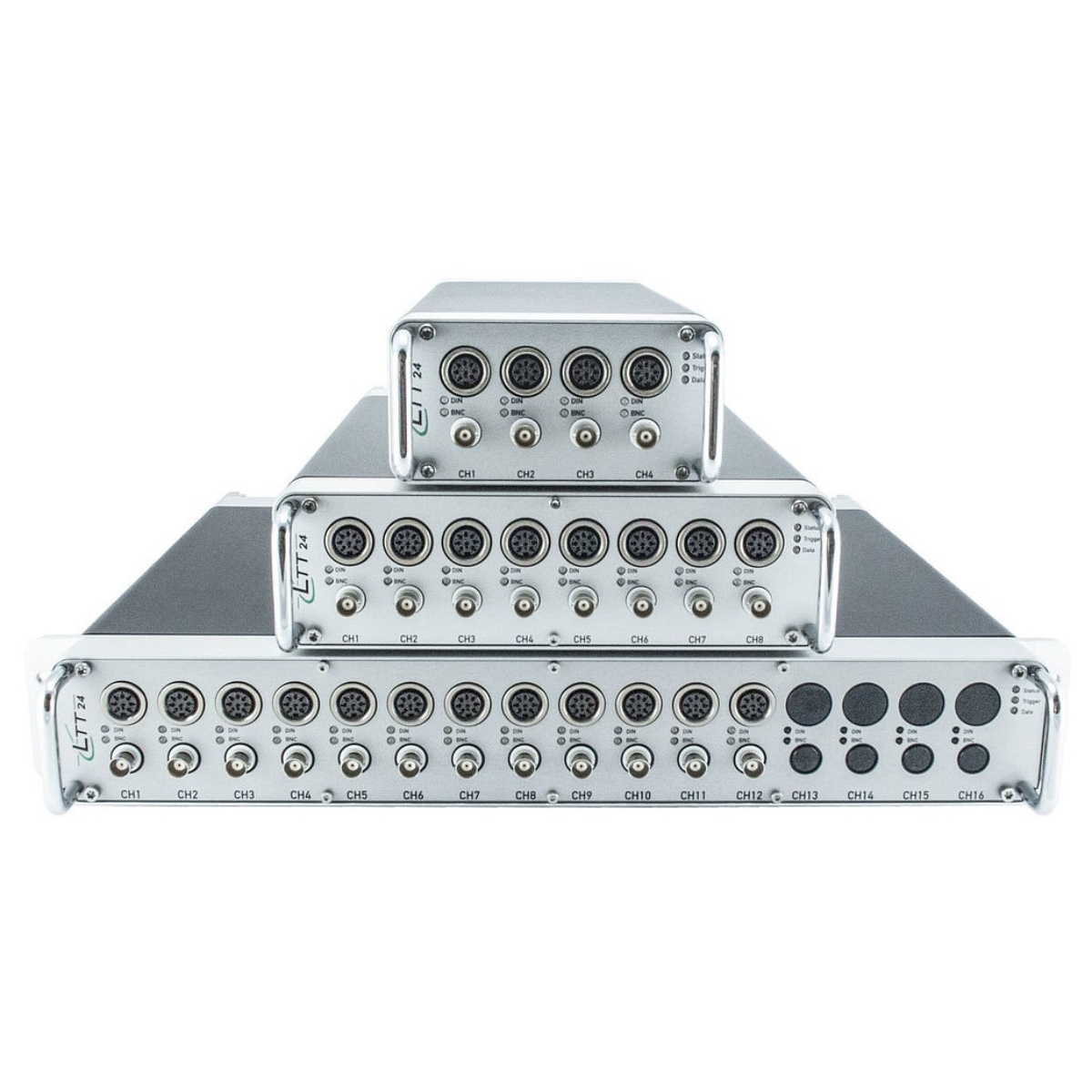

Precision measuring device / transient recorder LTT24

  • Highest precision: 24-bit AD converter, up to 4 MSample/s, true 16-bit ENOB over a wide frequency range.
  • Versatile sensor support: Compatible with voltage, current, ICP®, DMS, LVDT, PT100 and many more.
  • Modular & expandable: Up to 32 channels per device, synchronisable, various housing and IO options.
  • Powerful data processing: USB 3.1/Gigabit Ethernet, integrated SSD, support for common software.
  • Wide range of applications: Ideal for research, industry, mobile measurements and test benches.
More information about the LTT24
[Translate to English:] Präzisionsmessgerät / Transientenrekorder LTT24
[Translate to English:] Industrie-Messdatenerfassungsgerät LTTsmart

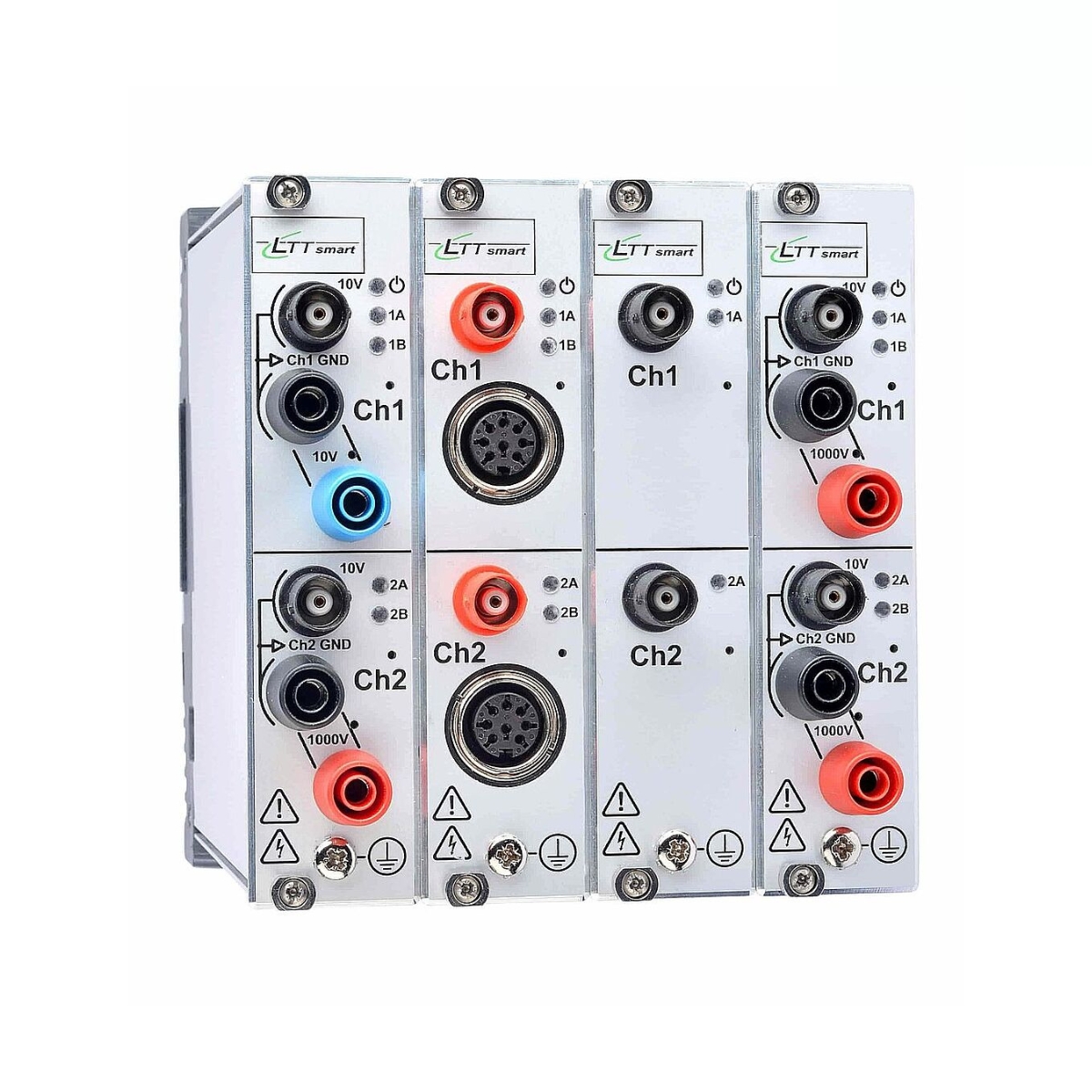

Industrial data acquisition device LTTsmart

  • Modular & scalable: 2-channel modules, expandable to up to 16 channels per device; different input types can be combined.
  • High-precision data acquisition: 24-bit A/D converter, up to 4 MHz sampling rate per channel, bandwidth up to 1.7 MHz.
  • Versatile sensor support: Compatible with voltage, current, ICP®, strain gauge, charge, pulse/counter.
  • Robust design: Galvanic isolation up to 1500 VDC; suitable for industrial environments.
  • Flexible integration: Supports LTTpro, MATLAB, LabVIEW and others.
More information about the LTTsmart

Power Analyzer / Power Meter LTTsmart

  • Optimised for electric drives: Precise analysis of inverter signals and power quality in electric motors and inverters.
  • High-voltage-capable inputs: Up to ±1000 Vrms; galvanically isolated with 1500 VDC insulation.
  • Advanced software functions: LTTpro Power Analyser for real-time power calculations, including THD, efficiency, speed.
  • Flexible configuration: Modular design with 2-channel modules; various housing options (top-hat rail, 19", mobile).
  • Seamless integration: Compatible with test bench software such as DASYLab, GI.bench, LabVIEW; real-time data transfer.
More information about the LTTsmart Power Analyzer
Power-Analyzer / Leistungsmessgerät LTTsmart

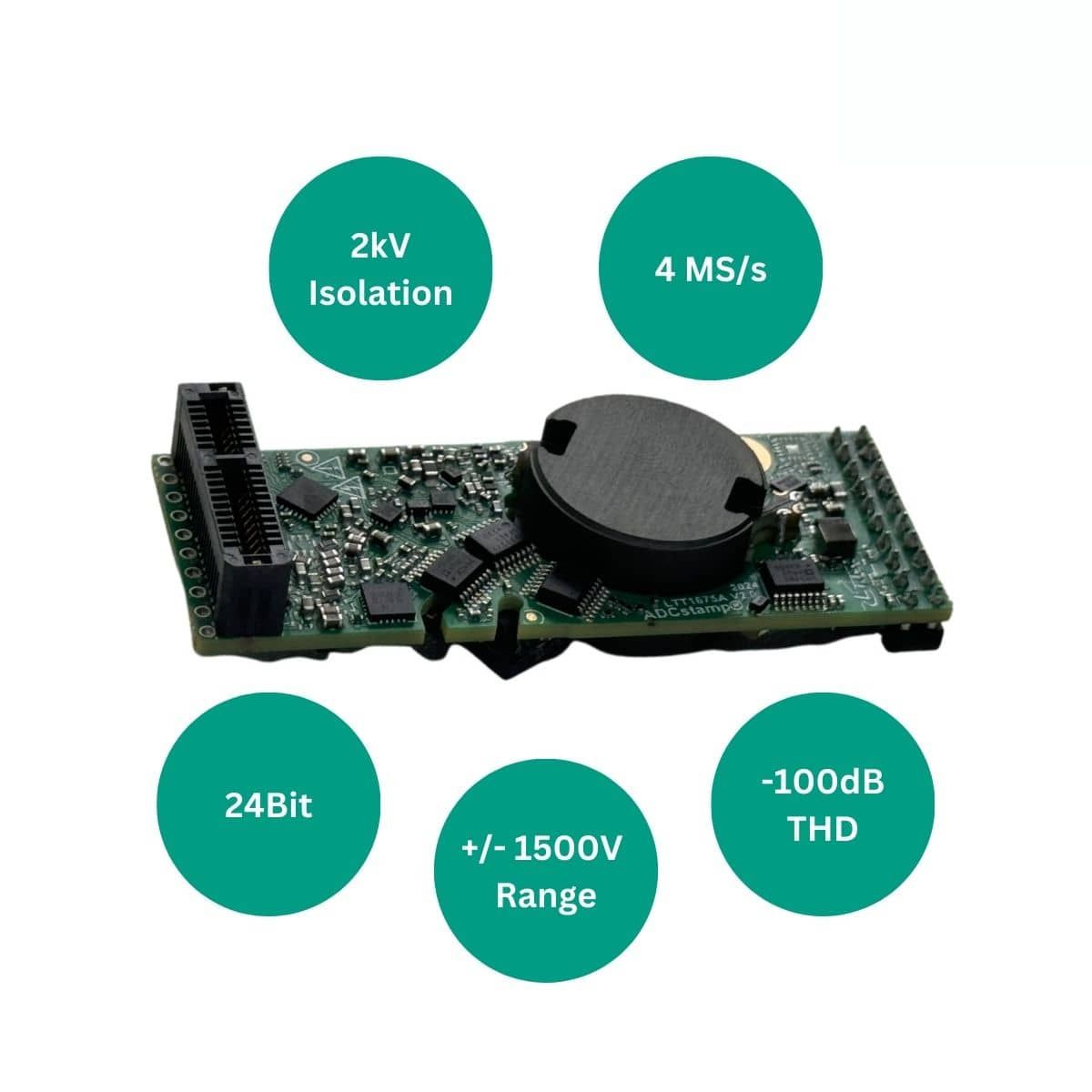

ADCstamp is an AD converter as a system-on-module (measuring channel module)

A/D converter system module: ADCstamp

  • Compact design: Ideal for embedded systems and space-critical applications.
  • High-resolution: 24-bit A/D converter for precise signal processing.
  • Versatile application possibilities: Suitable for OEM integrations in a wide range of measurement systems.
  • Energy-efficient: Low power consumption for use even in battery-powered devices.
  • Simple integration: Standardised interfaces for fast system integration.
More information about the ADCstamp

Demotermin vereinbaren

Would you like to see LTT precision measurement technology for yourself? No problem! Simply request a demo appointment now and we will present our products to you at your preferred location or, alternatively, via live stream.

Just click here: Demo appointment





Right away: The perfect data acquisition software

With LTTpro, we offer you the right DAQ software for your LTT measuring device!

  •     Real-time analysis: LTTpro enables immediate analysis and visualisation of measurement data thanks to integrated online mathematics.
  •     Plug-and-play: Driverless installation allows direct use without additional software configuration.
  •     Power measurement: With the Power Analyser, LTTpro provides precise electrical performance figures for demanding applications.
  •     Data export & integration: A wide range of export formats and interfaces enable seamless further processing of the data.
  •     Customisable to your needs: Individual extensions and customised functionality.

Interested? We will be happy to answer any questions you may have and provide you with a customised quote. Simply send us an e-mail to kontakt@tasler.de or give us a call.

Zur Software LTTpro
